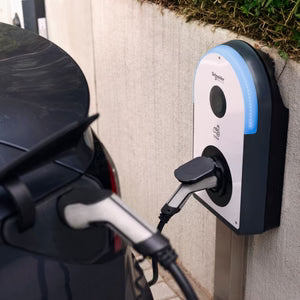

Schneider 7.4kW Single Phase Charging Station with 5 Meter Cable

7.4 kW Smart EV Charger:

Power up your EV with a smart, safe and durable 7.4 kW EV charging solution designed for convenient indoor and outdoor charging. With smart connectivity, secure access control and advanced protection, it’s built for modern EV charging needs. Key Features

7.4 kW Charging Power – Single-phase, 32A

Type 2 Connection – Reliable and widely compatible EV charging

Smart Connectivity – OCPP 1.6, Ethernet, Bluetooth & optional 3G/4G

Remote Management – Monitor and control charging remotely

Secure Access – RFID, NFC or free-access options

Advanced Safety – Integrated 6mA RDC-DD protection

Weather & Impact Resistant – IP55 & IK10 rated

Flexible Installation – Wall-mounted or floor-standing

5 m Charging Cable – Convenient charging reach

LED Status Indicators – Available, Charging & Fault

Wide Operating Range – -30°C to +45°C

Secure Communication – SOCCI-compliant cybersecurity

Standards Compliant – EN/IEC 61851, EN/IEC 62196 & ISO 15118

Specifications

Power: 7.4 kW
Current: 32A
Voltage: 220–240V AC, 50/60Hz
Connector: Type 2
Protection: RDC-DD, 6mA
Dimensions: 529 × 317 × 153 mm
Weight: 10 kg
Cable: 5 m
IP Rating: IP55
IK Rating: IK10
Operating Temperature: -30°C to +45°C
Mounting: Wall / Floor Standing
Altitude: Up to 2000 m without derating
