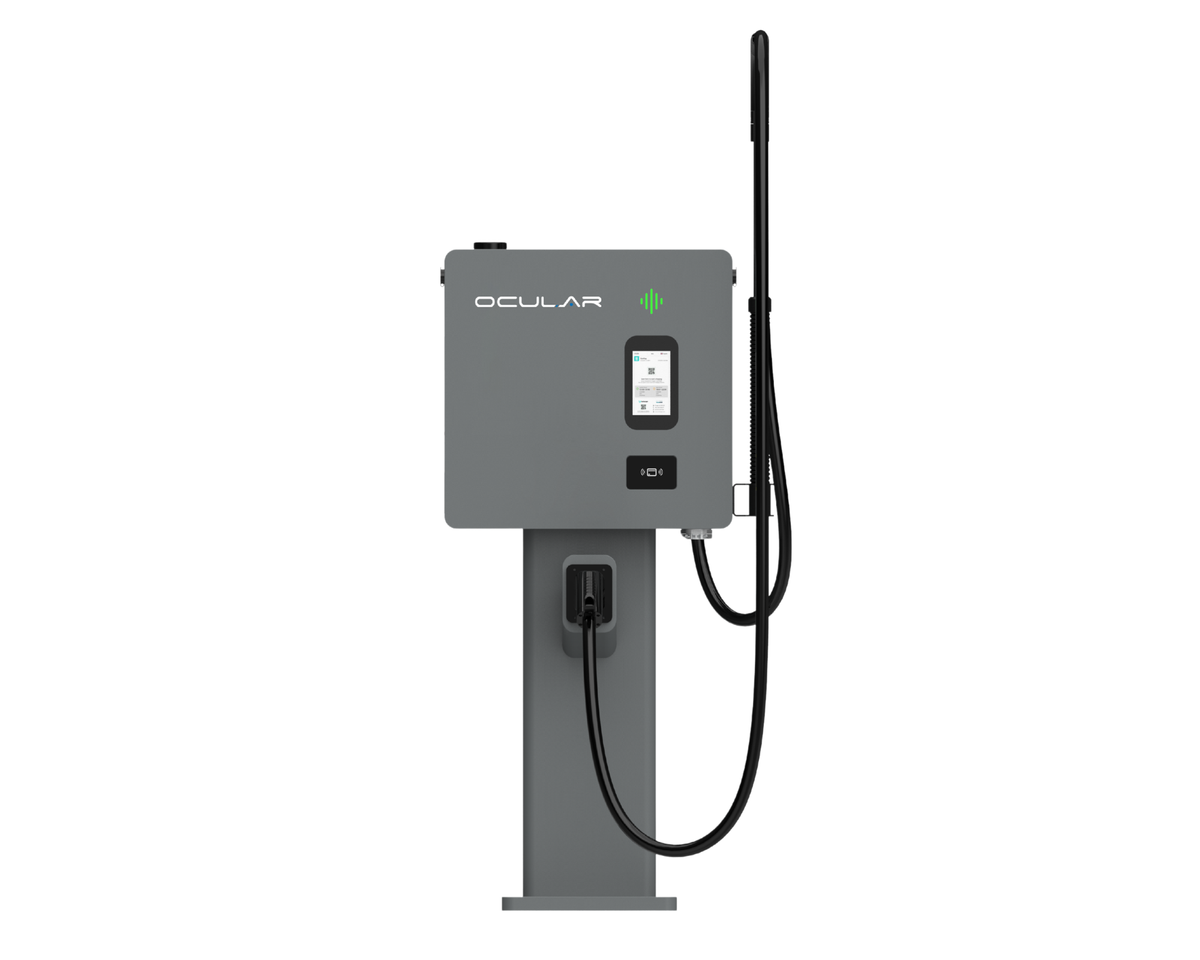

Ocular Titan DC Charger 40kW

The Ocular Titan 40kW DC Fast Charger is a powerful, compact charging solution designed for commercial fleets, public charging stations, and high-end locations in Australia. Delivering up to 40kW of direct power, it bypasses the vehicle's onboard AC charger to get electric vehicles back on the road instantly.

Available in Single or Dual output formats, allowing you to charge one or two vehicles simultaneously.

Key Features:

• Rapid DC Charging: Delivers a 40kW output stream for ultra-fast charging.

• Flexible Mounting: Supports either direct wall-mounting or floor-standing installation via an optional pedestal stand.

• Smart Network Integration: Full OCPP 1.6J compliance (upgradable to OCPP 2.0.1) for smooth backend management, billing, and smart load control.

• User Interface: Bright 7-inch LCD touch screen providing live charging feedback and data.

• User Authentication: Secure access via RFID cards, QR codes, smartphone apps, or optional payment modules.

• Connectivity: Ethernet, Wi-Fi, and built-in 4G modem.

Technical Specifications & Dimensions:

• Charging Speeds: 40kW DC Fast Charging

• Dimensions (W x H x D): 548 x 775 x 294 mm

• Input Voltage: 3-Phase 400V AC, 50/60Hz

• Charging Plugs: CCS Type 2 (Standard, 5-meter cable)

• Enclosure Rating: IP54 weatherproof rating, designed for Australian conditions

• Warranty: 2 Years

• Certifications: CE, RCM compliant (Australian Standards)
