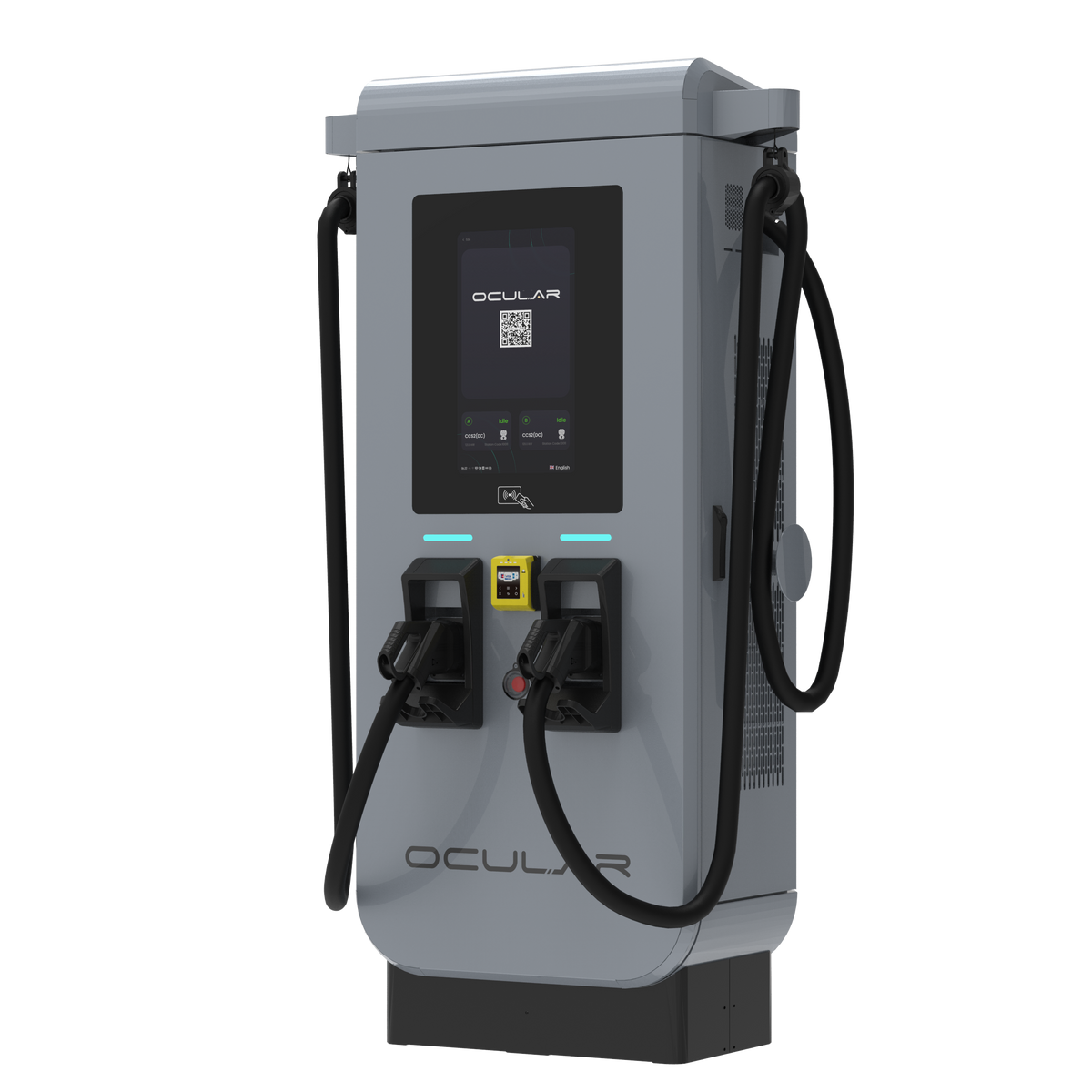

Ocular IQ Dual Port Tower V2 | 2 x 22kW | Socket

The Ocular Dual Port Tower is a commercial-grade AC EV charging station designed to charge two electric vehicles simultaneously. With dual Type 2 charging sockets and configurable charging output, it is suitable for commercial car parks, workplaces, apartment buildings, hotels, retail locations, fleet facilities and other public or private charging environments.

Key Features

• Dual-port charging for 2 EVs simultaneously
• Up to 2 × 22kW AC charging
• Dual IEC 62196 Type 2 sockets
• Configurable charging current from 10A–32A
• Three-phase AC charging
• OCPP 1.6J and OCPP 2.0 support
• Smart charging and load management capability
• Billing and payment management via compatible OCPP platforms
• RFID access control
• Smartphone/app control via compatible OCPP platforms
• Built-in LCD display for charging information
• MID-certified energy meter with NMI upgrade option
• Built-in dual Type-B RCCB protection
• Multiple electrical and safety protections
• Commercial-grade metallic housing
• IP55 outdoor protection rating
• IK10 impact protection
• Load management support for up to 250 charging units
• Suitable for a wide range of EV brands and models
• 2-year warranty

Technical Specifications

Charging Output: 2 × 22kW (32A, 3-phase)
Alternative Output: 2 × 7kW (32A)
Input Voltage: 230–400V AC
Charging Current: 10A–32A configurable
Phase: Three Phase
Socket Type: Dual Type 2
Communication: Ethernet, 2.4GHz Wi-Fi, 4G modem
OCPP: OCPP 1.6J / OCPP 2.0
Protection Rating: IP55
Impact Rating: IK10
Dimensions: 350 × 1435 × 200 mm
Weight: 42 kg
Operating Temperature: -30°C to +55°CThe Ocular Dual Port Tower is a reliable, scalable and smart EV charging solution for businesses and property owners looking to provide convenient dual-vehicle AC charging with advanced network management capabilities.
