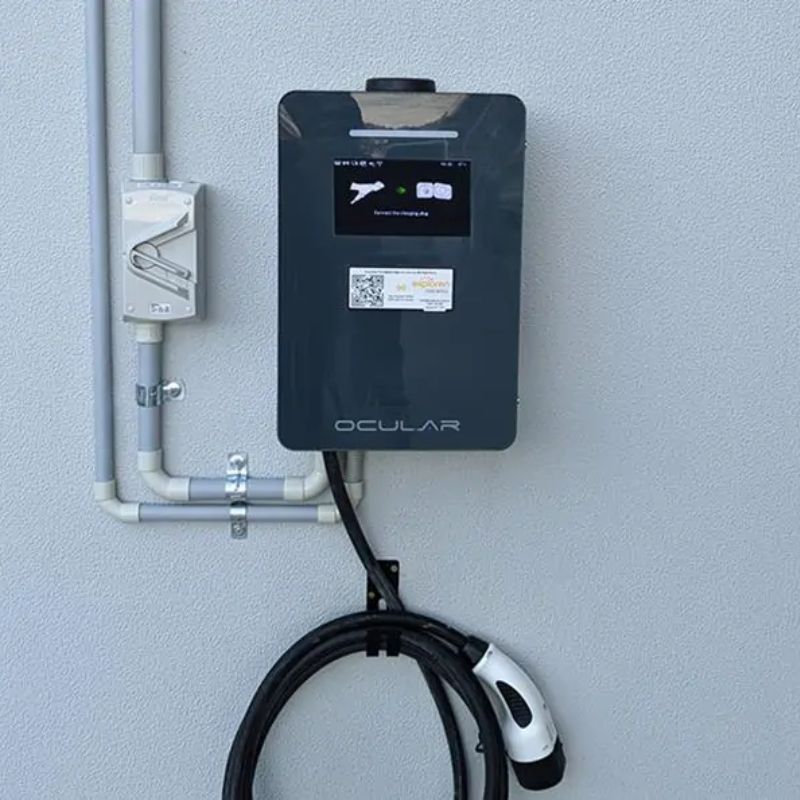

Ocular IQ Commercial V3 | 22kW | w/5m Type 2 Cable

The Ocular IQ Commercial Tethered EV Charger is a robust, heavy-duty charging station designed for Australian public, workplace, and fleet applications. Built with a rugged metallic casing, it features an integrated 5-meter Type 2 cable and an advanced 7-inch LCD screen for live charging updates.

With full OCPP 1.6J and 2.0.1 support, it easily connects to any backend management system for billing, monitoring, and smart operations.

Key Features:

• Charging Speeds: 7kW / 22kW options available.

• Cable: 5m hardwired Type 2 EV cable included.

• Smart Management: Full OCPP 1.6J, 2.0.1 including smart profiles (Smart Charging, Firmware Management, Remote Trigger, Local Auth List & Reservation).

• Smart Solar Integration: Ready for commercial solar setups (requires additional controller).

• Access Control: Built-in RFID card reader (ISO14443 Type A compatible) and smartphone access via OCPP.

• Installation: Wall or post-mounted with wide-angle door opening for easy field maintenance.

Technical Specifications & Protections:

• Display & Status: 7” LCD live charging display with LED indicator (Charging, Faulty, Available).

• Energy Meter: MID certified energy meter.

• Safety Protections:

  • Integrated Type B RCD for reduced installation costs.

  • Over current, short circuit, over/under voltage, ground fault, lightning surge, and over-temperature protection.

• Connectivity: Ethernet, 2.4G/5G Wi-Fi, and optional 4G module.

• Build & Durability: IP55 weatherproof rating, IK10 vandal-resistant metallic casing (conforming to IEC 61851-22).

• Dimensions: 380 x 288 x 141 mm.

• Operating Temp: -30°C to +50°C (Storage: -40°C to +70°C).

• Warranty: 2 Years.
