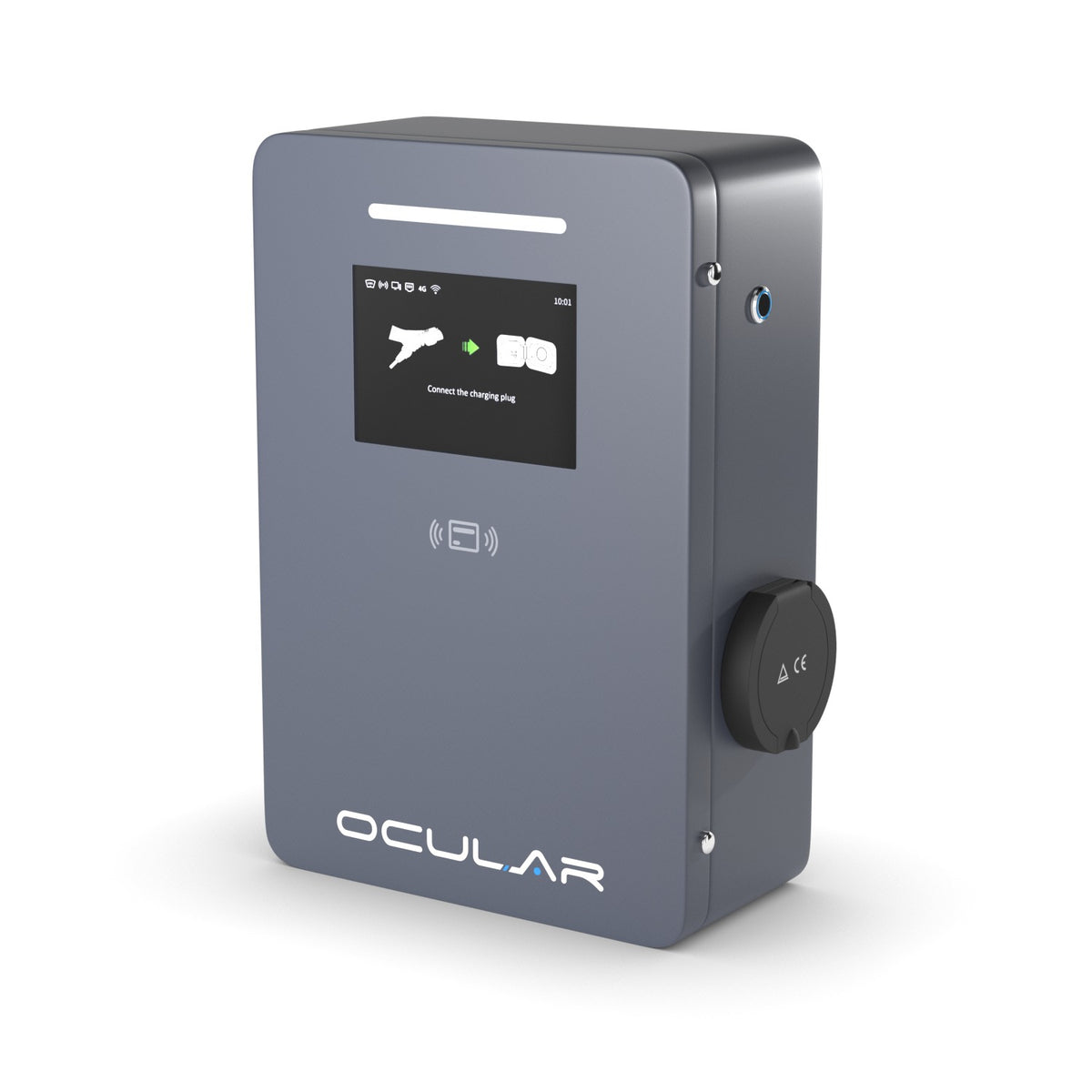

Ocular IQ Commercial V3 | 22kW | Socket

The Ocular IQ Commercial | Universal is a high-quality, cost-effective EV charging station engineered to deliver fast Mode 3 charging to any electric vehicle in Australia. Built with a robust commercial metallic casing tested for harsh Australian conditions, it features full OCPP 1.6J and 2.0.1 integration for seamless connection to any charging management system.

Equipped with an advanced 7-inch LCD display, built-in load balancing, integrated Type B RCD protection, and smart solar integration capabilities, the Ocular IQ Commercial provides effortless operation, monitoring, and maintenance for workplace, fleet, and public charging sites.

Key Features & Highlights:

• Flexible Installation: Wall or post-mounted with wide-angle door opening and modular components for fast installation and servicing.

• Charging Speeds: Available in 7kW (Single Phase) and 22kW (Three Phase) options.

• Smart Management: Full OCPP 1.6J and 2.0.1 compliance (includes Smart Charging, Firmware Management, Remote Trigger, Local Auth List, and Reservations).

• Built-in Safety: Integrated Type B RCD, overload, short circuit, over/under voltage, ground fault, lightning surge, and over-temperature protection.

• Advanced Solar Integration: Connects smoothly with solar PV systems (requires an additional controller).

• User Access: Built-in RFID card reader (ISO14443 Type A compatible) and smartphone access via OCPP.

• Connectivity: Ethernet, 2.4G / 5G Wi-Fi, and optional 4G module.

Technical Specifications:

• Display: Advanced 7” LCD live charging display

• Status Indicator: LED light bar (Charging, Faulty, Available)

• Energy Meter: MID certified energy meter

• Enclosure Rating: IP55 weatherproof, IK10 vandal-resistant metallic casing (conforming to IEC 61851-22)

• Dimensions: 380 x 288 x 141 mm

• Operating Temperature: -30°C to +50°C (Storage: -40°C to +70°C)

• Compliance: CE Compliant, Australian standards tested
