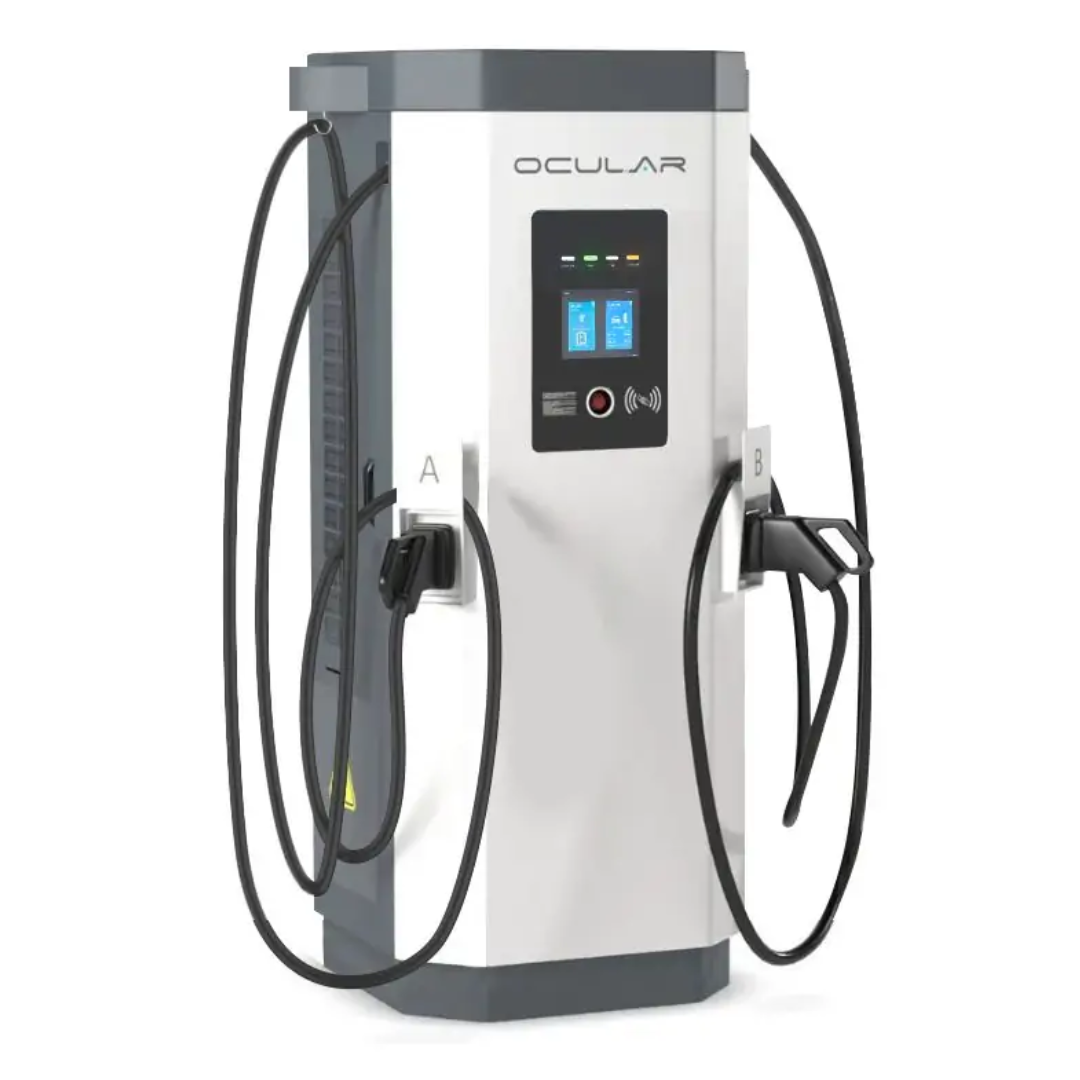

Ocular Atlas 90kW DC Fast EV Charger | Dual CCS2 | OCPP 1.6J / 2.0.1

The Ocular Atlas 90kW DC Fast Charger is a heavy-duty, commercial-grade floor-mounted charging station engineered for public charging networks, corporate fleets, offices, and roadside locations in Australia. Equipped with dual CCS2 charging ports, it allows two electric vehicles to charge simultaneously, maximizing site efficiency and throughput.

Built to withstand harsh Australian weather conditions, it features a rugged metal enclosure, an 8-inch TFT LCD touch screen, and full OCPP backend integration for seamless monitoring, user authentication, and billing.

Key Features:

• Simultaneous Dual Charging: Features 2x CCS2 connectors to charge two EVs at the same time.

• High-Power Performance: Delivers up to 90kW of direct DC power, compatible with high-voltage battery systems.

• Smart Management: Full OCPP 1.6J and 2.0.1 support for integration with management and billing platforms (such as Exploren, Chargefox, etc.).

• User Interface & Authentication: 8-inch interactive touch screen with built-in RFID reader, mobile app support, and optional Nayax credit card payment module.

• Modular Reliability: Built with 30kW power modules for easier servicing and maximum uptime.

Technical Specifications & Dimensions:

• Charging Speed: 90kW DC Fast Charging (Max 200A DC per port)

• Supply Input: 3-Phase 400V ± 15% AC, 50/60 Hz (Input Current: 139A per phase)

• Output Voltage Range: 150V – 1000V DC

• Cables: 2x 5-meter Phoenix Contact CCS2 cables as standard (other lengths on request)

• Enclosure Rating: IP55 weather-resistant rating with forced air cooling

• Dimensions (H x W x D): 1815 x 1008 x 868 mm

• Operating Temperature: -30°C to +50°C

• Safety Protections: Over-current, short circuit, over/under voltage, ground fault, lightning surge, and over-temperature protection. Emergency stop push button included.

• Warranty: 2 Years

• Certifications: CE, RCM compliant (meets Australian standards)
