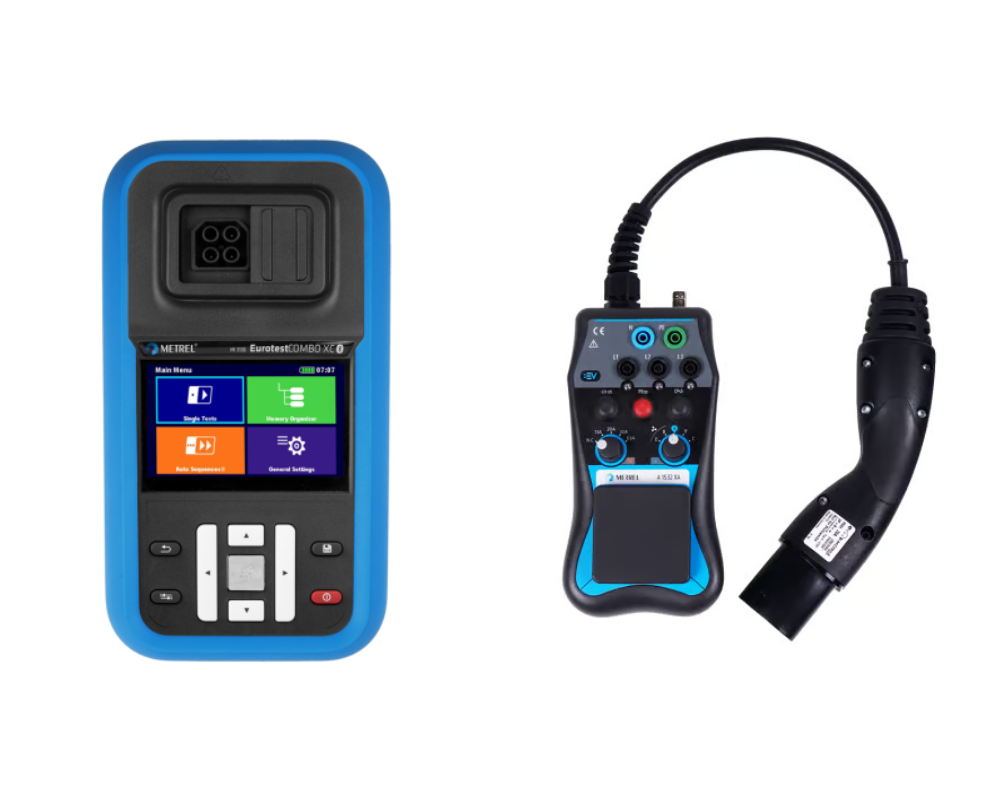

Metrel MI 3136 XC Station + 1532 XA Adapter Bundle

The Metrel MI 3136 XC Station + 1532 XA Adapter Bundle is a professional, all-in-one testing kit designed for electrical contractors to service and test EV charging stations (Mode 3, Type 2) in compliance with AS/NZS 3017 standards.

Combining the MI 3136 multifunction tester with the A 1532 XA adapter, this kit allows complete electrical safety and functional testing at the push of a button using automated test sequences.

Key Features:

• Complete EVSE Testing: Inspect electrical safety, functionality, and state-by-state responses for Mode 3 EV chargers.

• Smart Auto Sequences: Predefined testing profiles for TN/TT earthing systems and EVSE testing.

• Fault & Load Simulation: Supports 3-phase load testing up to 13A, 6mA EV RCD testing, and error simulations (PE open, diode short).

• Touchscreen Interface: 4.3” TFT high-resolution colour touch display with built-in help screens and Bluetooth/Wi-Fi connectivity.

• Fast Charging Battery: 5.2Ah Li-ion battery with universal USB Type-C fast charging (45W).

Technical Specifications, Dimensions & Warranty:

• Dimensions (Instrument): Approx. 230 x 103 x 115 mm

• Testing Capabilities: Insulation resistance (50V to 1000V), continuity, loop/line impedance, RCD testing (Types AC, A, F, B, B+), and earth resistance.

• Warranty: 2 Years
