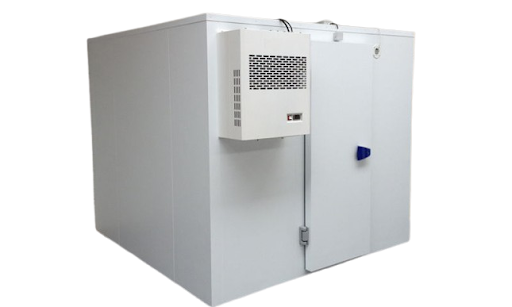

Arctix® DIY Coldroom

Arctix® Modular Coolrooms & Freezer Rooms – Specifications

Why Choose Arctix®?

• Pre-packaged & Ready to Install: All parts included, no need to source separately.
• Plug & Play Setup: Slide-in monoblock refrigeration system for easy installation.
• Energy Efficiency: Inverter refrigeration system for reduced energy consumption.
• Customizable Size: Options for hinged or sliding doors.
• Durability: Built with heavy-duty polyurethane (PU) panels and steel construction.
• Australian Standard: Power supply compatible with 220V-240V, 1-phase, 50Hz.

Construction & Build:

• Panel Type: Polyurethane sandwich panels (100mm thickness).
• Steel Surface: 0.526mm color steel on both sides.
• Insulation Density: 40 kg/m³.
• Floor: Aluminium checker plate for durability.
• Curtain: Plastic curtain for extra temperature control.

Refrigeration & Cooling:

Cooling Range:
● Chiller Mode: 0°C to +7°C.
● Freezer Mode: -1°C to -18°C.

Energy-efficient Features:
● Inverter refrigeration.
● 1 EC condenser fan + 1 EC evaporator fan.
● Hot gas defrost system.
● Electronic expansion valve and superheat controller.

Power Supply: 220V–240V, Single Phase, 50Hz.
● Pre-Wired: Comes with 3m cable and AU plug.

Doors & Access:
● Standard Door: Lockable hinged door (900mm W × 1850mm H).
● Optional: Sliding door available on request.

Assembly & Components:
● Easy DIY Assembly: Panels are numbered for quick setup.
● Included Kit:

• Rivets, extrusions, LED lighting.

• Emergency bell, silicone sealant.

Available Sizes:

• 2.0 × 2.6 × 2.2 meters
• 2.5 × 2.5 × 2.2 meters
• 2.5 × 3.0 × 2.2 meters
• 3.0 × 3.0 × 2.2 meters
• 3.0 × 3.6 × 2.2 meters

Warranty & Support:

• Warranty: 2-year manufacturer warranty on refrigeration system and parts.
• After-Sales Support: Available for spare parts and maintenance.
